Identify the machine
Record the equipment brand, exact model, and approximate operating weight.
Measure Before You Order
How to measure
Four details for faster fitment confirmation
Clear photos with a tape measure visible are strongly recommended.
Measure track shoe width
Measure the steel track shoe from outer edge to outer edge in millimetres.
Confirm mounting style

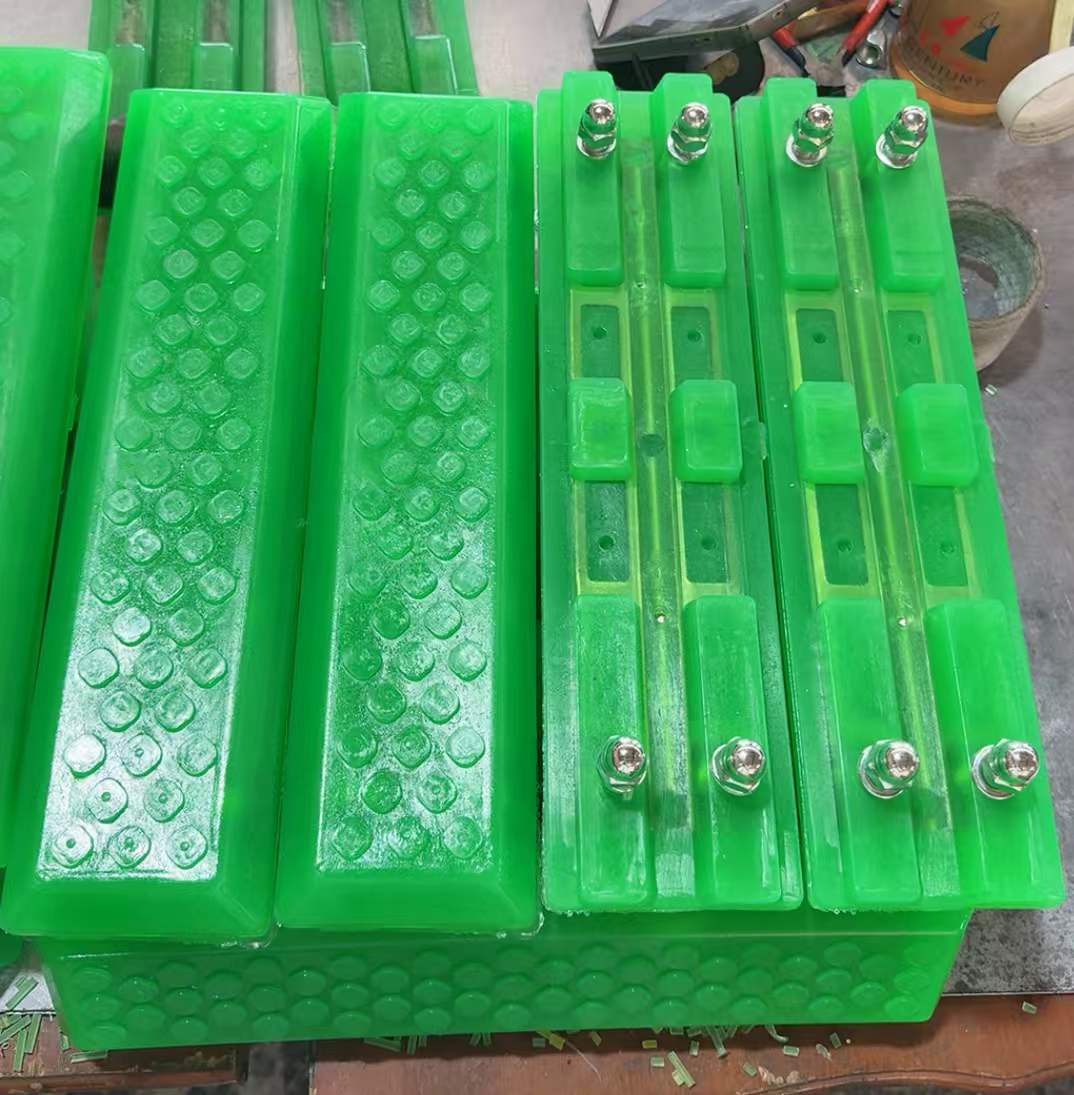

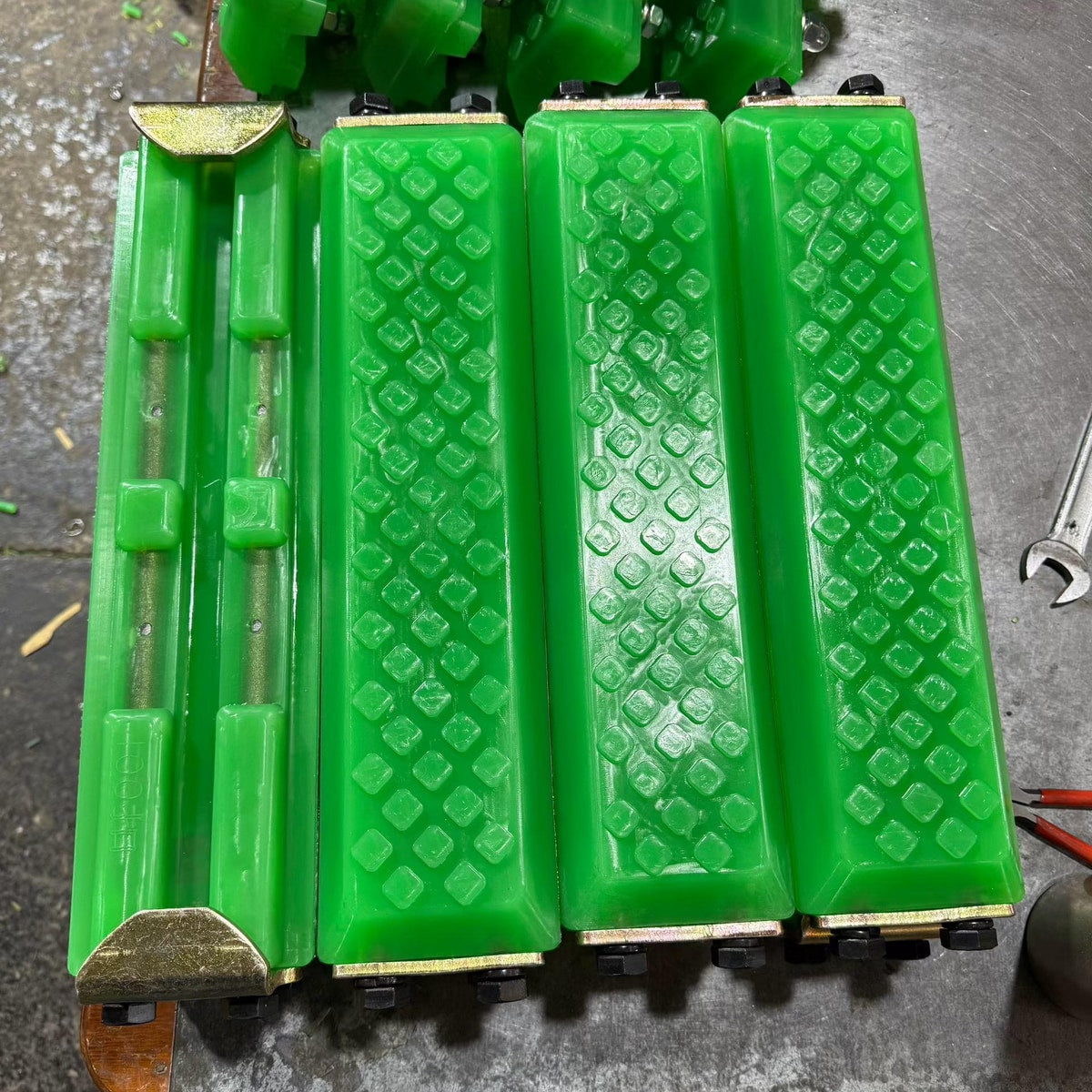

Photograph the top and underside to identify bolt-on, clip-on, or single-side clip-on mounting.
Count required pieces
Confirm pads per side and whether you need one side or a complete machine set.
Track width and mounting holes
Use clear photos to confirm the correct pad.
Track width decides which pad model can fit your machine, and bolt-on pads require matching mounting holes.
Measure the steel track width
Measure the track shoe from outer edge to outer edge. Track width determines which track pad model your equipment can use. For example, a 450mm track fits a 450mm track pad.
Check bolt-on mounting holes
Customers who want bolt-on track pads must confirm that the steel track has pre-drilled mounting holes like this. Only tracks with mounting holes can use bolt-on track pads.
Ready for a fitment check?
